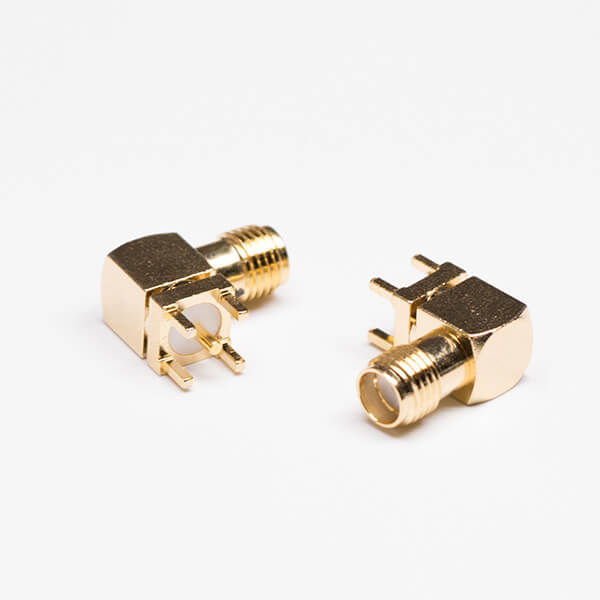

SMA Connector Right Angle PCB Mount Gold Female Plated Through Hole

SMA Connector Right Angle PCB Mount Gold Female Plated Through Hole SMA Connector Right Angle PCB Mount Gold Female Plated Through Hole
SMA Connector Right Angle PCB Mount Gold Female Plated Through Hole

Part NO.:1.11
Size:L15.00*W7.00*H12.85 mm
Tags: RF Connector,SMA Female,PCB Mount,Angled/90°

Features:

  • High quality SMA rf connector(small A type connector), high microwave frequency up to 18 GHz for wireless antenna applicaiton.

  • 1/4-36UNS thread connection to ensure stable performance in vibrating environment. Made according to MIL-C-39012 standard to meet ROHS requriement.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us
Specification
Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 200V AC
Working Temperature -40°C to +90°C

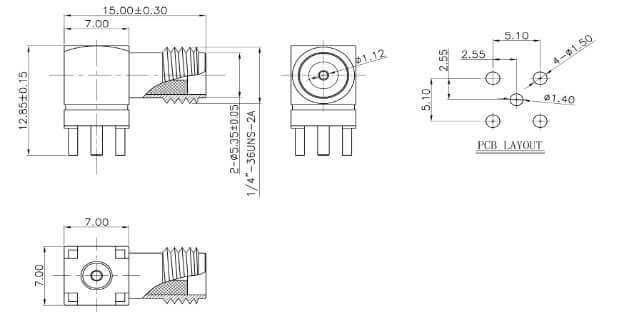

Drawing

1.11

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
