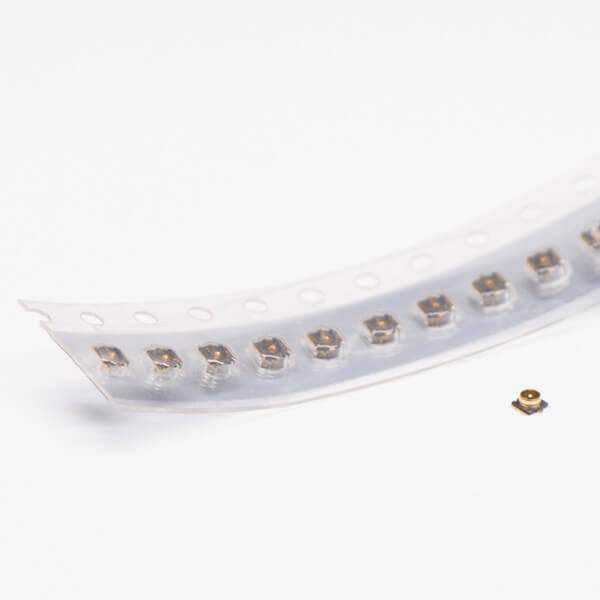

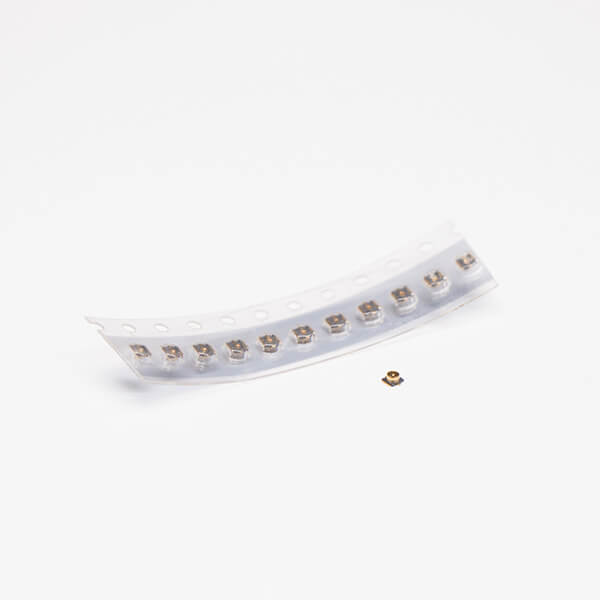

IPEX Connector MHF Ⅲ Surface Mount Solder for PCB Mount

IPEX Connector MHF Ⅲ Surface Mount Solder for PCB Mount IPEX Connector MHF Ⅲ Surface Mount Solder for PCB Mount
IPEX Connector MHF Ⅲ Surface Mount Solder for PCB Mount IPEX Connector MHF Ⅲ Surface Mount Solder for PCB Mount

Part NO.:1.2
Size:L2.00*W2.00*H0.85 mm
Tags: RF Conenctor,IPEX Ⅲ,PCB Mount

Features:

  • High-quality low-loss IPEX rf coaxial connector (also known as MHF/ UFL connector), made according to ROHS standards,

  • Include different models with cable connector and pcb connector for choice. OEM & ODM available.

  • FREE samples for test with 1 year’s warranty.

Contact us

Specification
Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 1000V AC
Working Temperature -30°C to +70°C
Drawing

1.2

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
