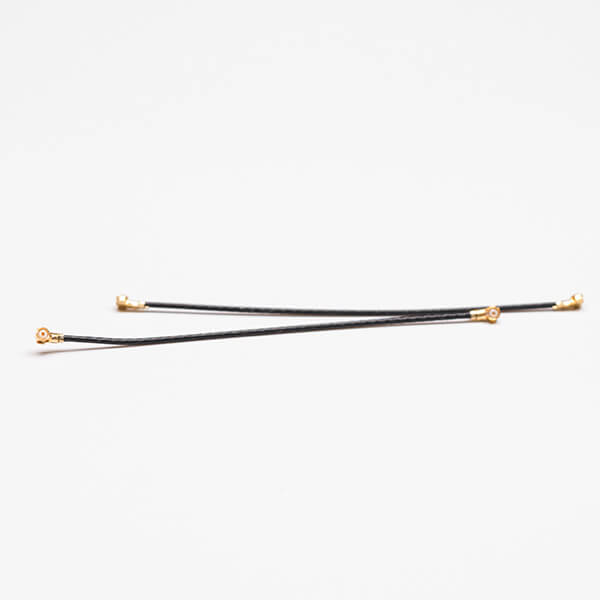

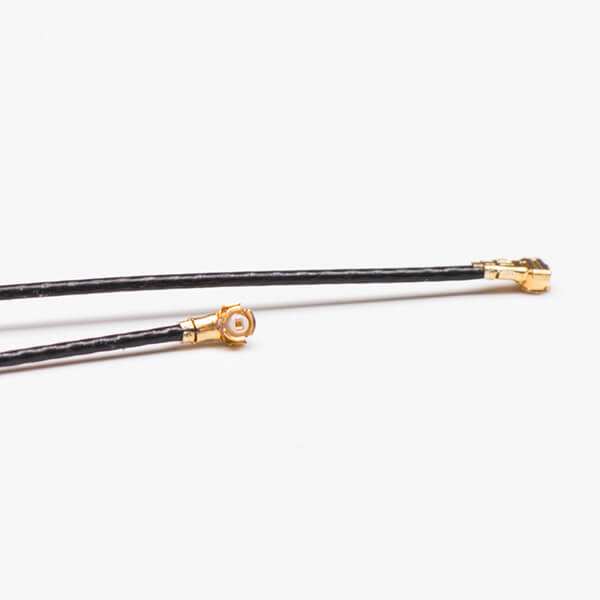

Coaxial to RF Cable 0.81 Black 2pcs with IPEX Ⅲ to IPEX Ⅲ

Coaxial to RF Cable 0.81 Black 2pcs with IPEX Ⅲ to IPEX Ⅲ Coaxial to RF Cable 0.81 Black 2pcs with IPEX Ⅲ to IPEX Ⅲ
Coaxial to RF Cable 0.81 Black 2pcs with IPEX Ⅲ to IPEX Ⅲ Coaxial to RF Cable 0.81 Black 2pcs with IPEX Ⅲ to IPEX Ⅲ

Part NO.:2.2
Size:Customized Length
Tags: RF Cable,Black,IPEX Ⅲ

Features:

  • Used for Wireless communication and Wireless LAN.

  • Application include Mobile Phone, PC, GPS, Network Storage Equipment, Medical, Lighting, Remote Control, etc.

  • Pre-assemblied with different RF connectors for choice. Size and cable length can be customized.

  • FREE samples for test with 1 year’s warranty.

Contact us

Specification
Main Specifications
Frequency Range DC-6GHz
Impedance 50Ω
VSWR 1.5 Max
Insertion Loss 1.8db
Insulation Resistance ≧5000MΩ
Power Handing 2W(cw)
Working Temperature -40°C to +85°C
Drawing

2.2

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
