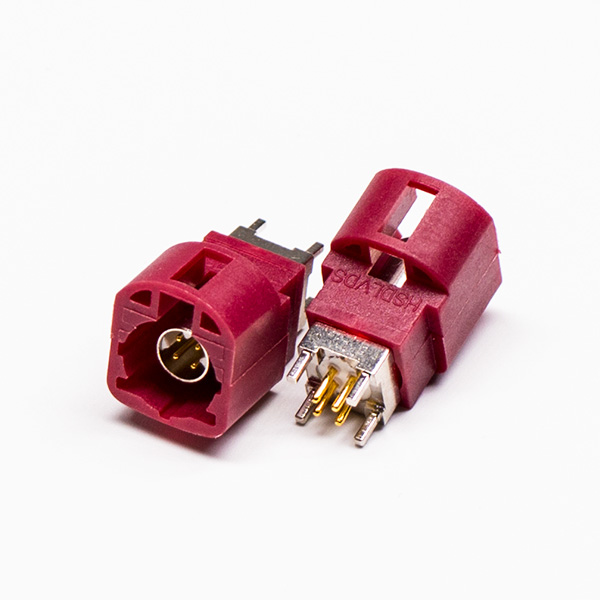

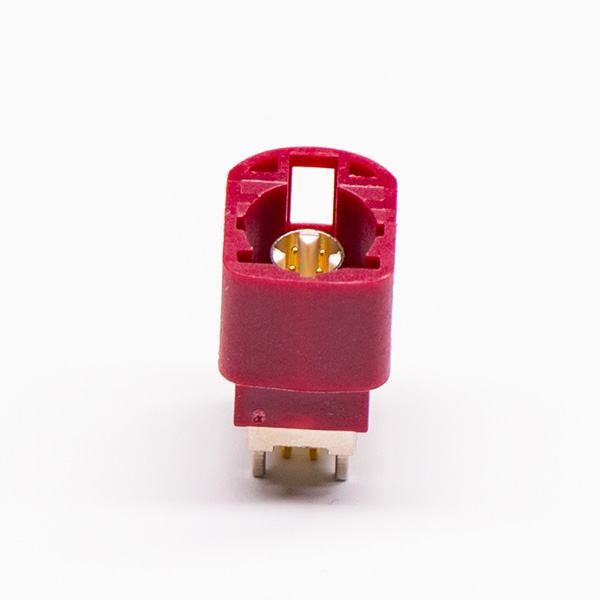

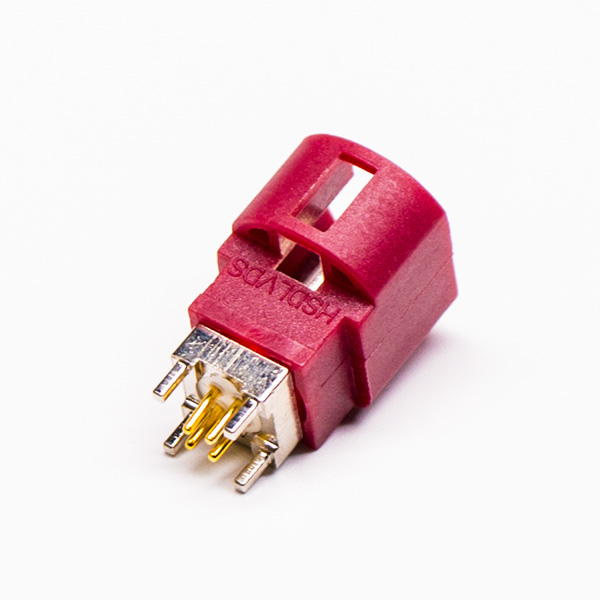

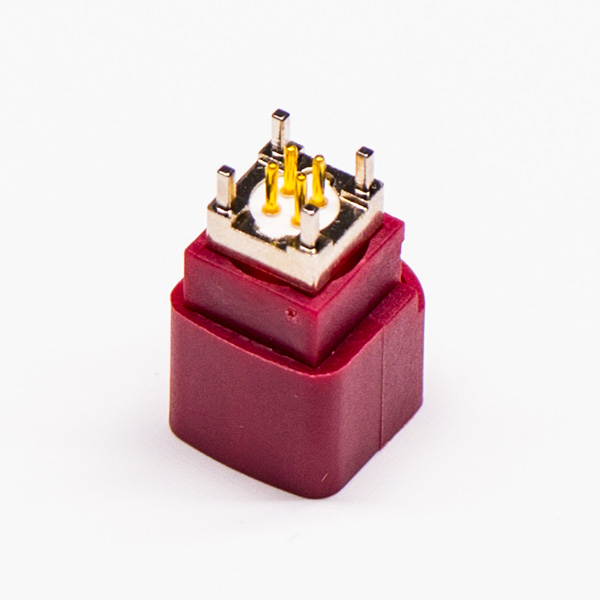

Offer HSD LVDS 180 Degree 4 Pin Male Red Through Hole or PCB Mount

Offer HSD LVDS 180 Degree 4 Pin Male Red Through Hole or PCB Mount
Offer HSD LVDS 180 Degree 4 Pin Male Red Through Hole or PCB Mount Offer HSD LVDS 180 Degree 4 Pin Male Red Through Hole or PCB Mount Offer HSD LVDS 180 Degree 4 Pin Male Red Through Hole or PCB Mount Offer HSD LVDS 180 Degree 4 Pin Male Red Through Hole or PCB Mount Offer HSD LVDS 180 Degree 4 Pin Male Red Through Hole or PCB Mount

Part NO.:1.25
Size: L24.20*W9.00*H13.20 mm
Tags:HSD,LVDS,4P Male,180°/Straight,Red,Through Hole,PCB Mount

Features:

  • High speed shielded connection system for digital data with performance up to 6Gbps.

  • Fully shielded connector system in different wire sizes and types.

  • provide connectivity solutions for vehicle infotainment modules, cameras, consumer ports and display units.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us
Specification
Main Specifications
Impedance  100ohm
Frequency Range DC- 2 GHz
Insertion Loss 0.1 dB max from DC – 2GHz
Current Rating 1000 MΩ MIN.
Contact Resistance Center Contact: ≤ 10 MΩ MIN.

Outer Contact: ≤7.5 MΩ MIN.
Working Temperature – 40°C to +105°C

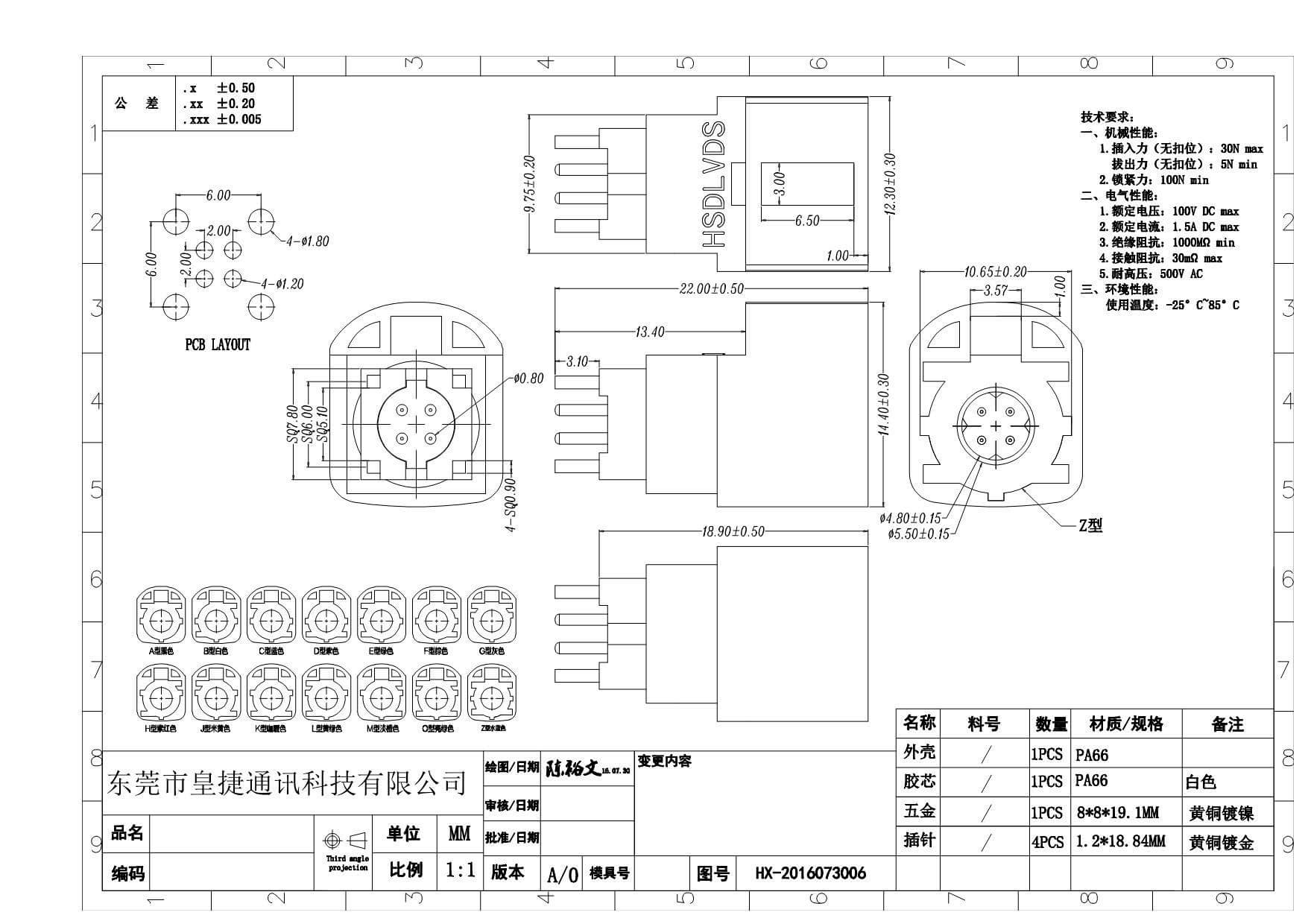

Drawing

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
