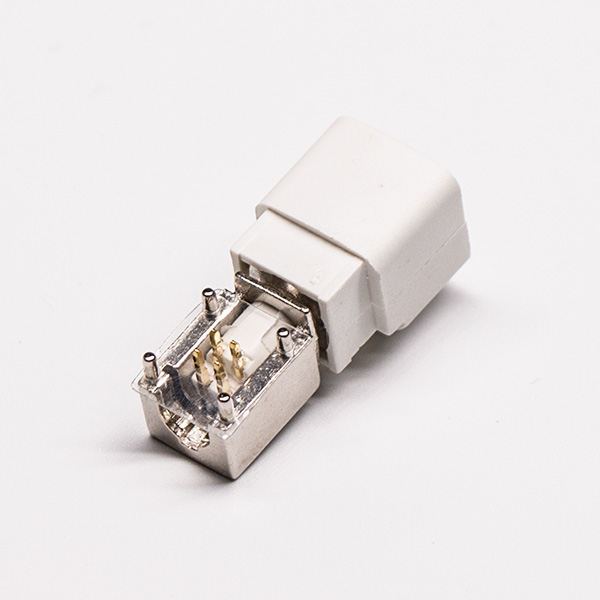

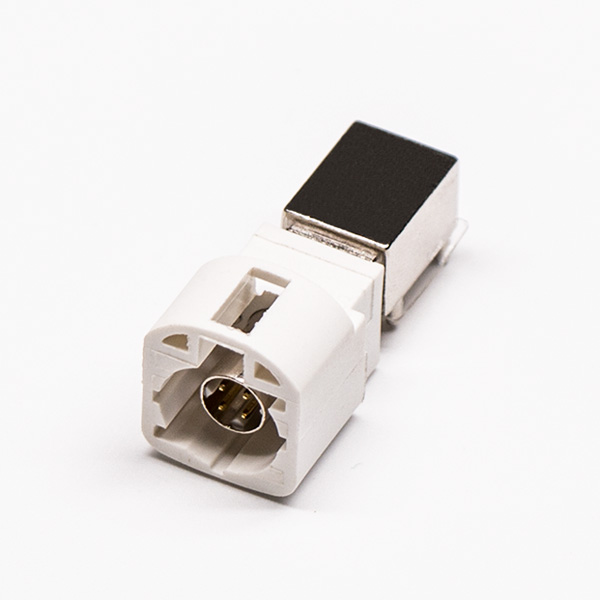

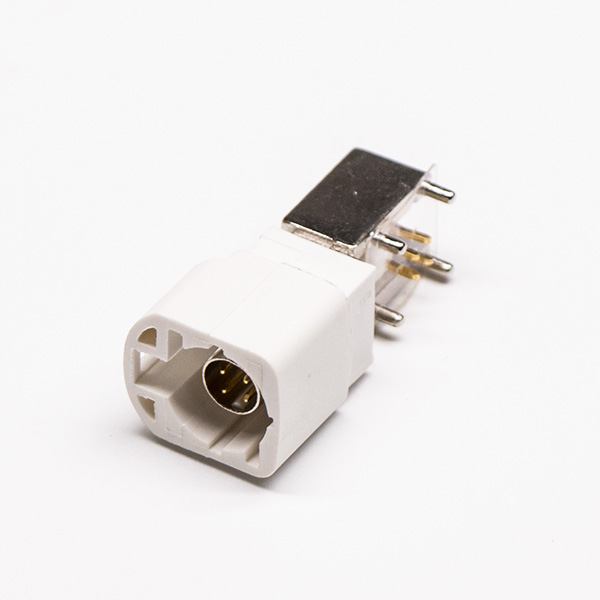

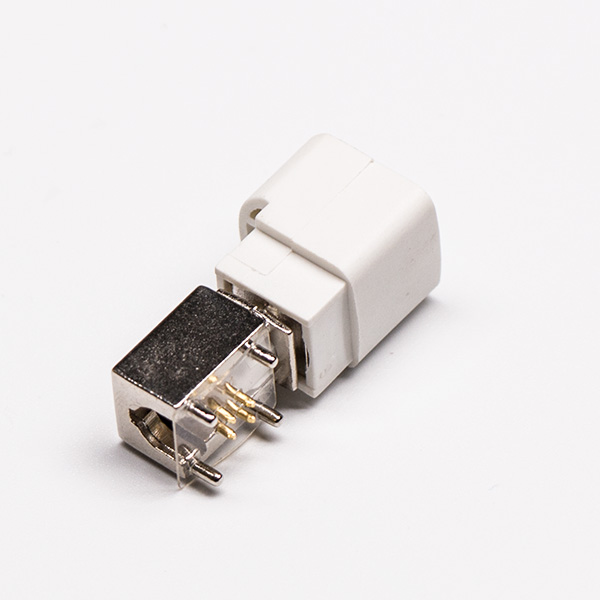

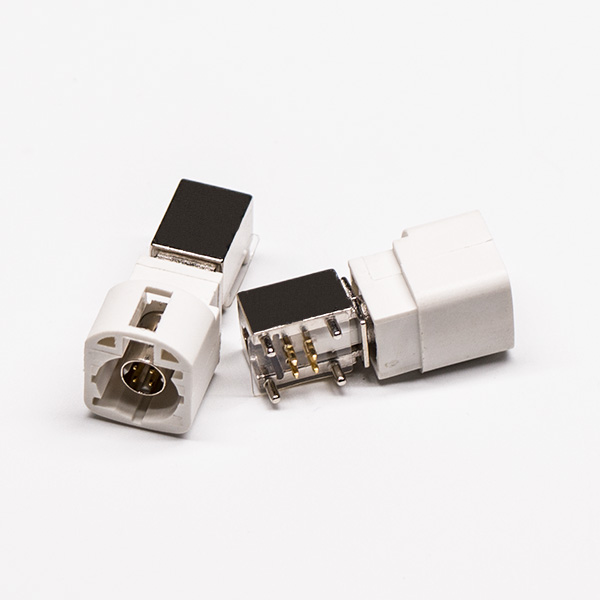

LVDS Connector HSD Male Right Angled Through Hole for PCB Mount

LVDS Connector HSD Male Right Angled Through Hole for PCB Mount
LVDS Connector HSD Male Right Angled Through Hole for PCB Mount LVDS Connector HSD Male Right Angled Through Hole for PCB Mount LVDS Connector HSD Male Right Angled Through Hole for PCB Mount LVDS Connector HSD Male Right Angled Through Hole for PCB Mount LVDS Connector HSD Male Right Angled Through Hole for PCB Mount

Part NO.:1.24
Size: L24.20*W9.00*H13.20 mm
Tags: HSD,LVDS,Male/Plug,90°/Right Angled,Through Hole,PCB Mount

Features:

  • High speed shielded connection system for digital data with performance up to 6Gbps.

  • Fully shielded connector system in different wire sizes and types.

  • provide connectivity solutions for vehicle infotainment modules, cameras, consumer ports and display units.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us
Specification
Main Specifications
Impedance  100ohm
Frequency Range DC- 2 GHz
Insertion Loss 0.1 dB max from DC – 2GHz
Current Rating 1000 MΩ MIN.
Contact Resistance Center Contact: ≤ 10 MΩ MIN.

Outer Contact: ≤7.5 MΩ MIN.
Working Temperature – 40°C to +105°C

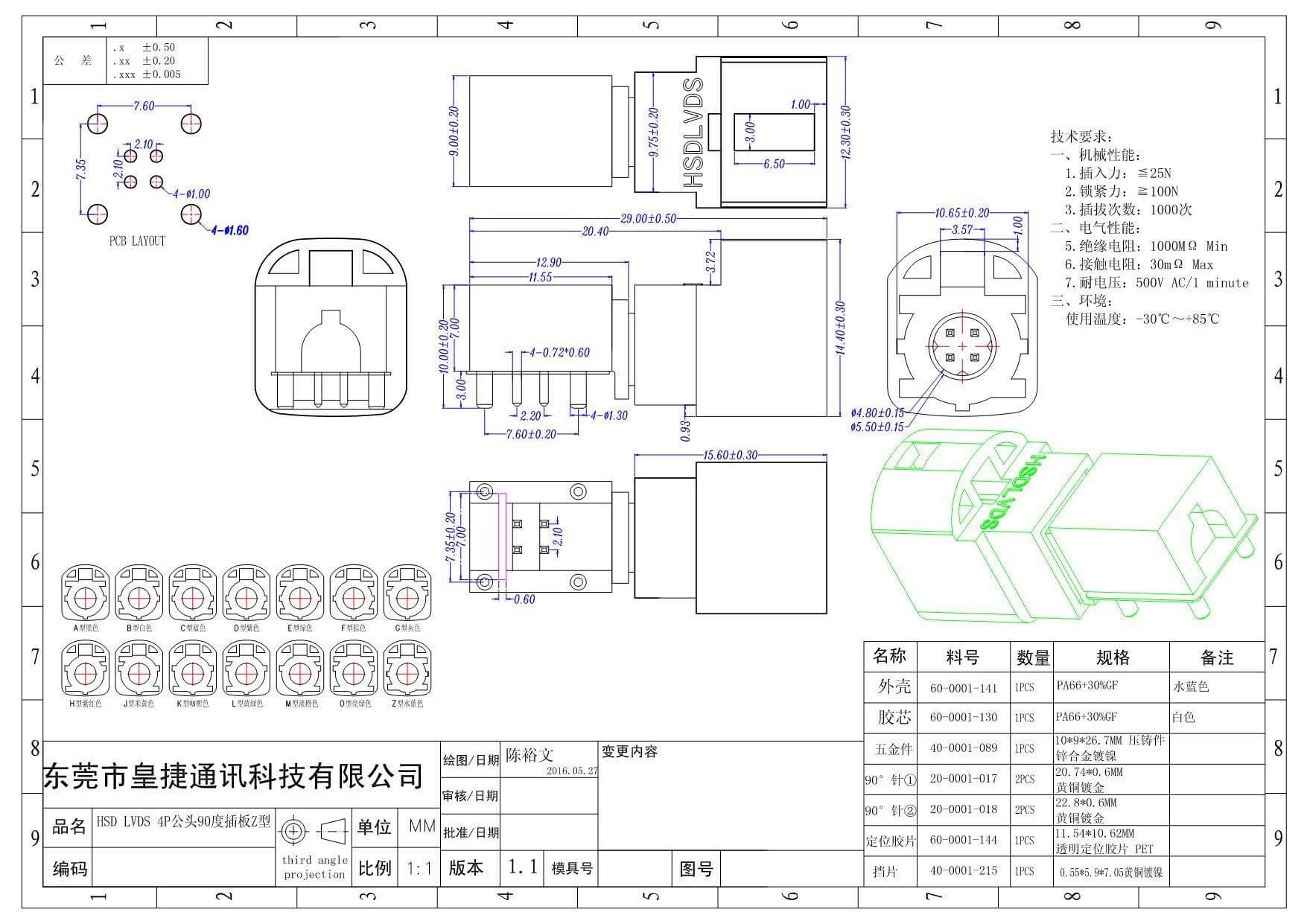

Drawing

LVDS Connector HSD Male Right Angled Through Hole for PCB Mount

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
