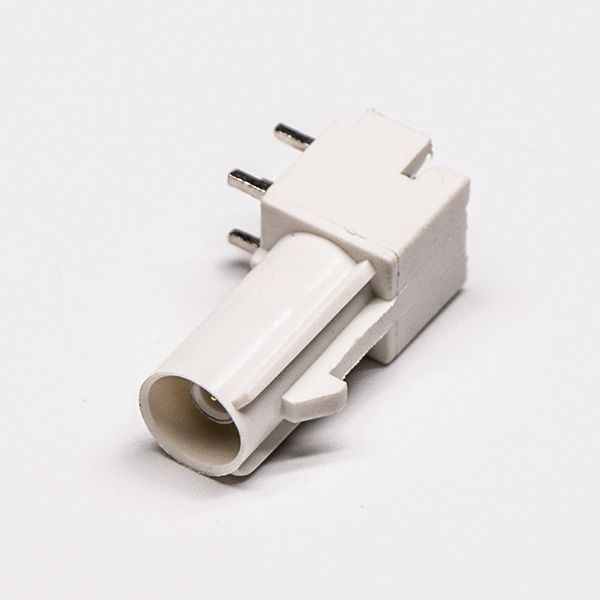

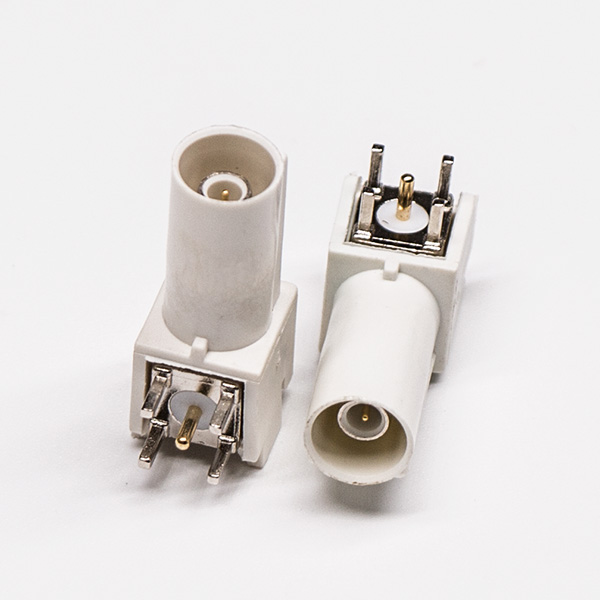

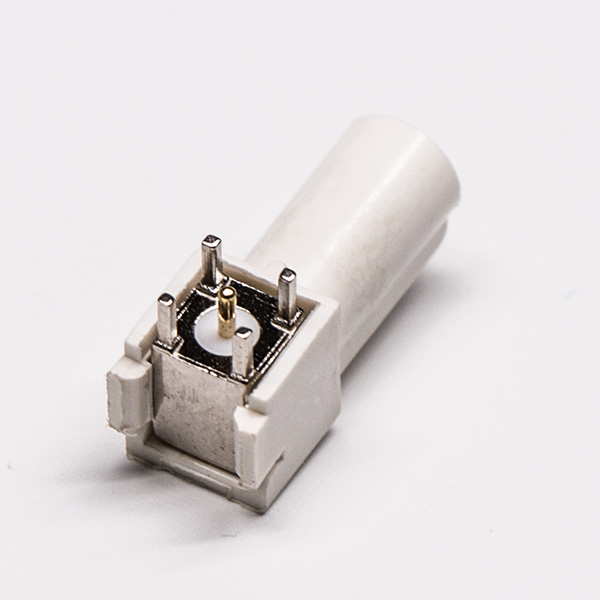

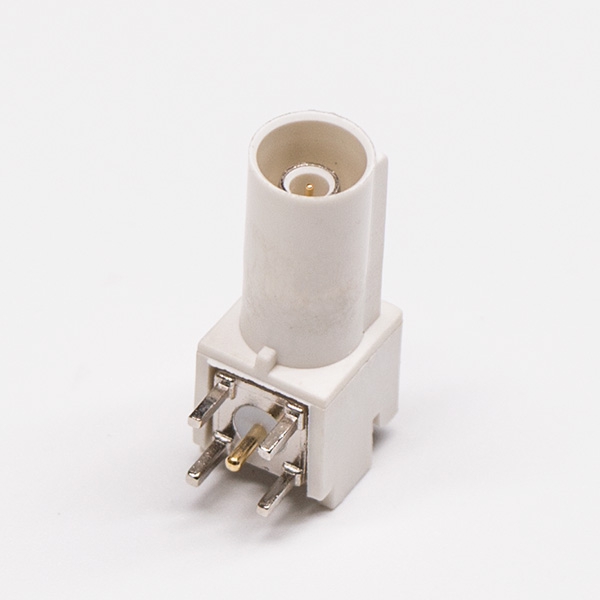

Fakra Connector Type B Right Angled White Through Hole for PCB Mount

Fakra Connector Type B Right Angled White Through Hole for PCB Mount
Fakra Connector Type B Right Angled White Through Hole for PCB Mount Fakra Connector Type B Right Angled White Through Hole for PCB Mount Fakra Connector Type B Right Angled White Through Hole for PCB Mount Fakra Connector Type B Right Angled White Through Hole for PCB Mount Fakra Connector Type B Right Angled White Through Hole for PCB Mount

Part NO.:1.23
Size: L24.20*W9.00*H13.20 mm
Tags: RF Connector,Fakra,Male/Plug,90°/Right Angled,White,PCB Mount

Features:

  • FAKRA rf coax circular connector, designed for automotive industry. With secondary locking structure, color discrimination and misplaced structure to prevent mismatch.

  • Safe and fully automatic assembly system to ensure the competitive price and high efficiency. Achieve the ROHS standard.

  • Widely used in car navigation systems, remote control systems, car TV, audio equipment, antenna and so on.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us

Specification
Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 200V AC
Working Temperature -40°C to +90°C

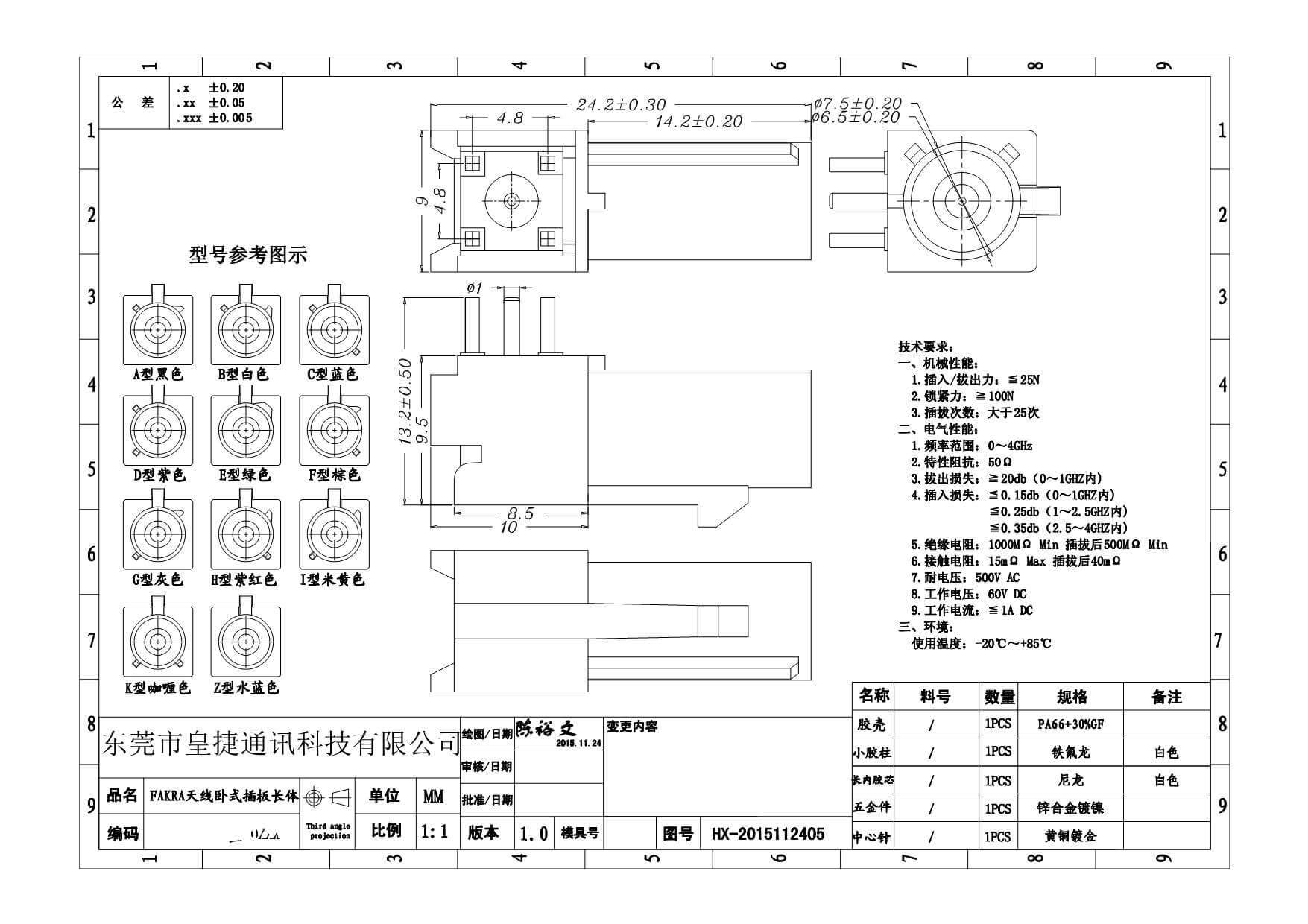

Drawing

Fakra Connector Type B Right Angled White Through Hole for PCB Mount

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
