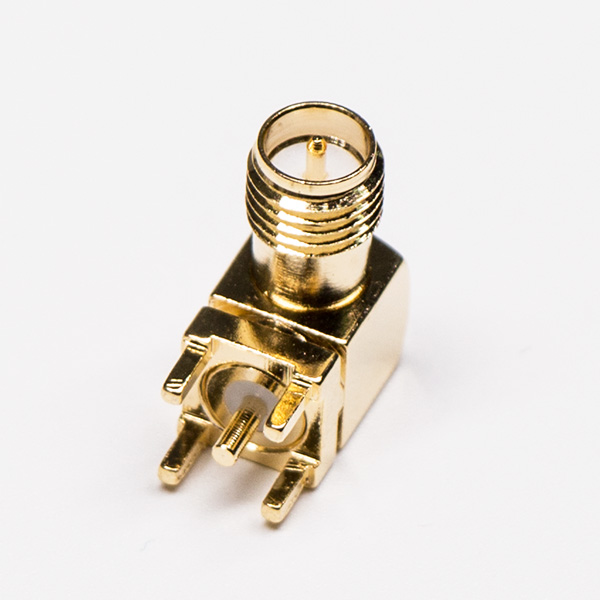

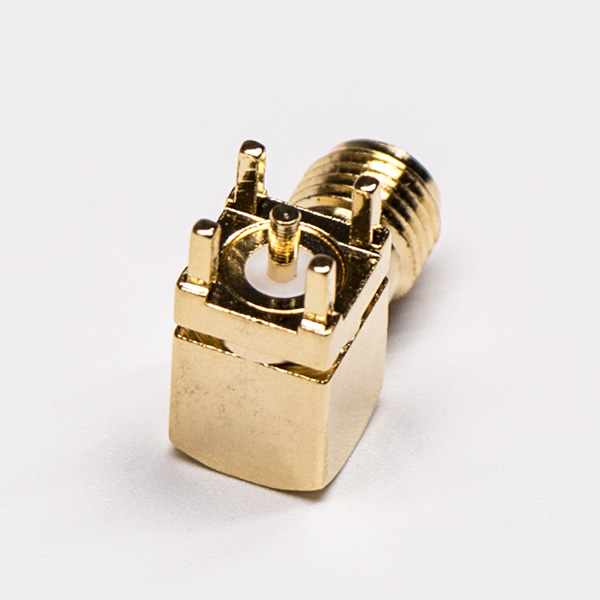

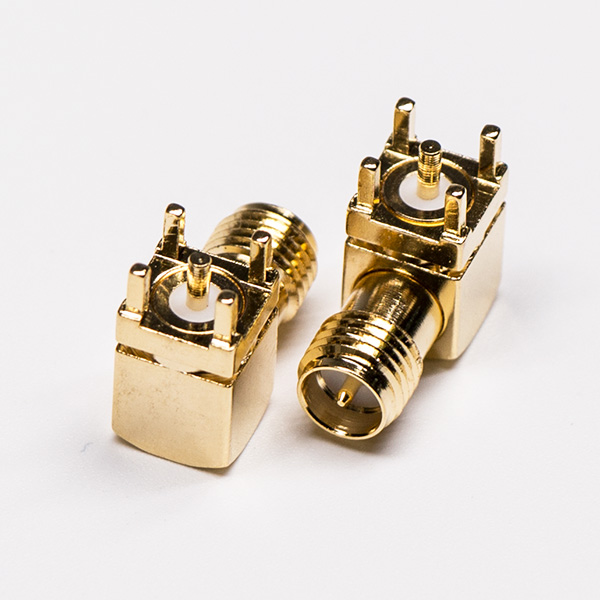

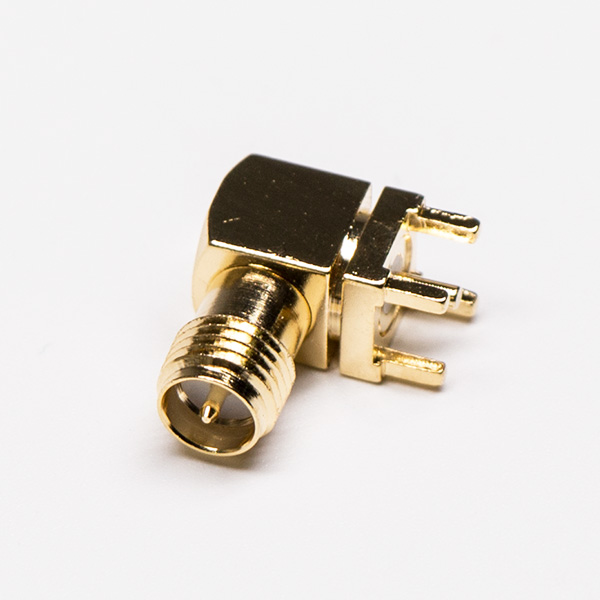

RP SMA Right Angle Threaded Connector Through Hole for PCB Mount

SMA Connector,RP Connector,90°/Right Angled,Threaded,Gold Plated,PCB Mount
SMA Connector,RP Connector,90°/Right Angled,Threaded,Gold Plated,PCB Mount SMA Connector,RP Connector,90°/Right Angled,Threaded,Gold Plated,PCB Mount SMA Connector,RP Connector,90°/Right Angled,Threaded,Gold Plated,PCB Mount SMA Connector,RP Connector,90°/Right Angled,Threaded,Gold Plated,PCB Mount

Part NO.:1.15
Tags: SMA Connector,RP Connector,90°/Right Angled,Threaded,Gold Plated,PCB Mount

Features:

  • High quality SMA rf connector(small A type connector), high microwave frequency up to 18 GHz for wireless antenna applicaiton.

  • 1/4-36UNS thread connection to ensure stable performance in vibrating environment. Made according to MIL-C-39012 standard to meet ROHS requriement.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us
Specification
Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 200V AC
Working Temperature -40°C to +90°C

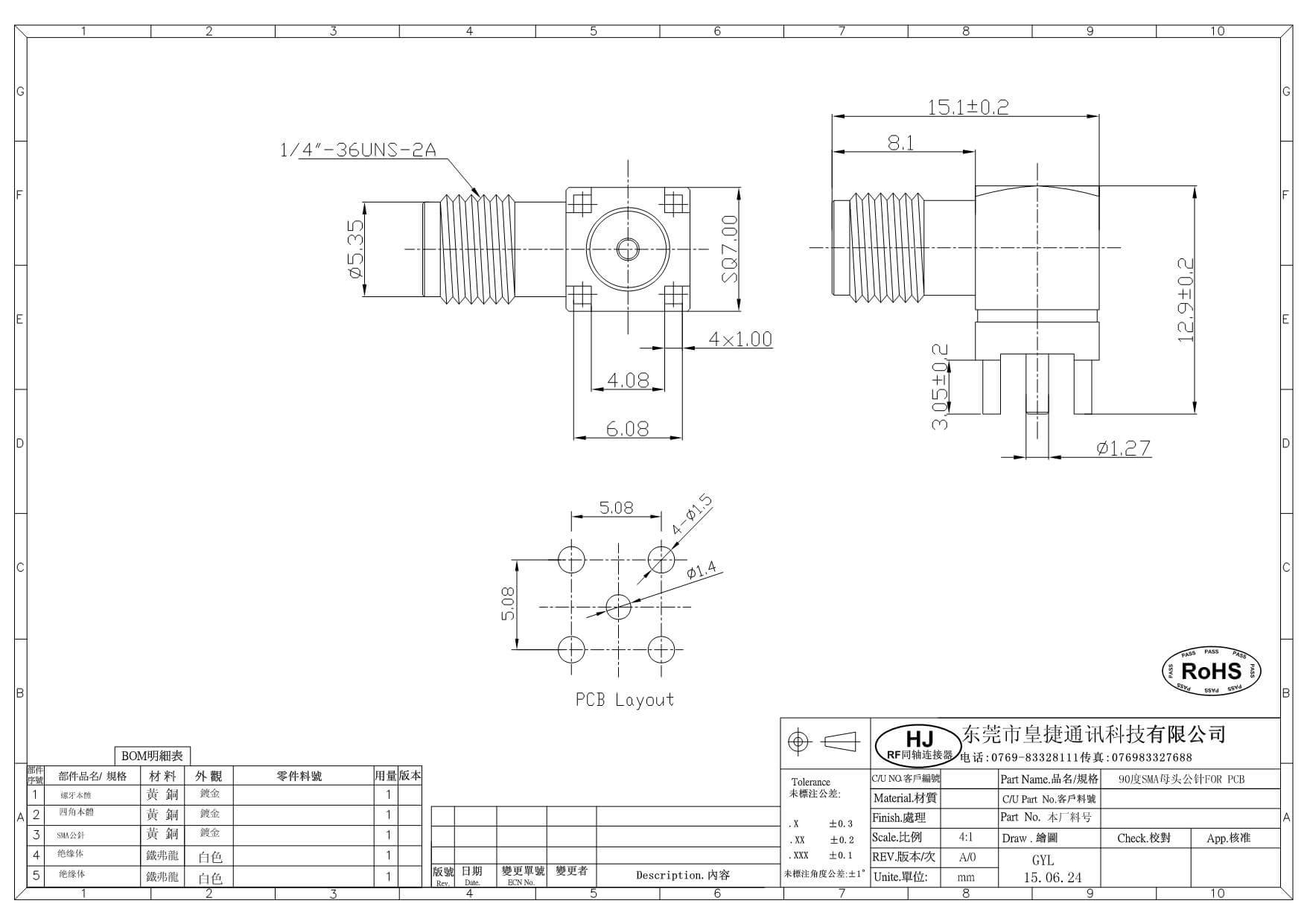

Drawing

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
