SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount

SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount
SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount

Part NO.:1.13
Tags: SMA Connector,Female/Jack,90°/Right Angled,Gold Plated,PCB Mount

Features:

  • High quality SMA rf connector(small A type connector), high microwave frequency up to 18 GHz for wireless antenna applicaiton.

  • 1/4-36UNS thread connection to ensure stable performance in vibrating environment. Made according to MIL-C-39012 standard to meet ROHS requriement.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us
Specification
Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 200V AC
Working Temperature -40°C to +90°C

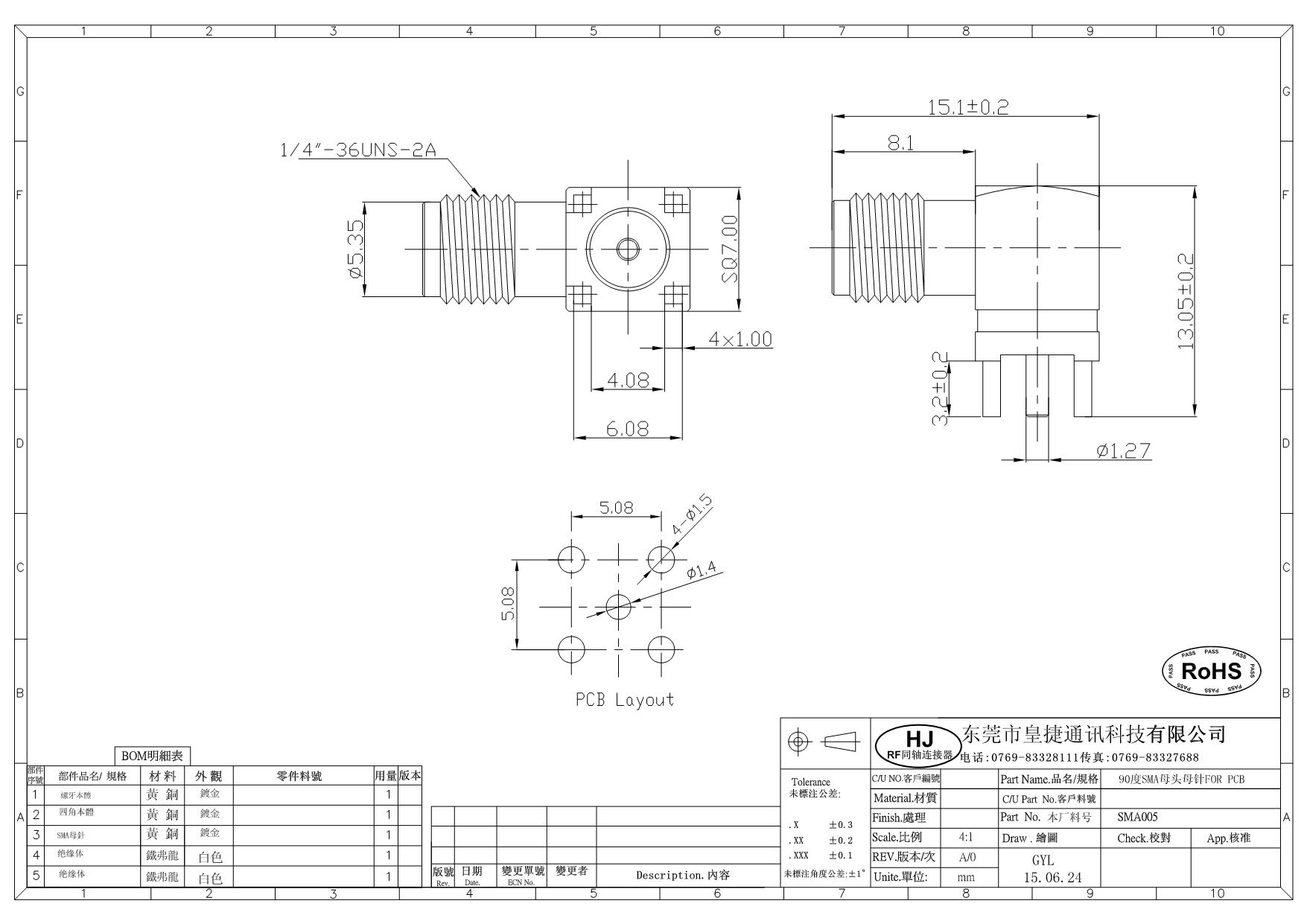

Drawing

SMA Right Angled Connector Female Gold Plated Through Hole for PCB Mount

Delivery&Payment
Payment Term
Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
